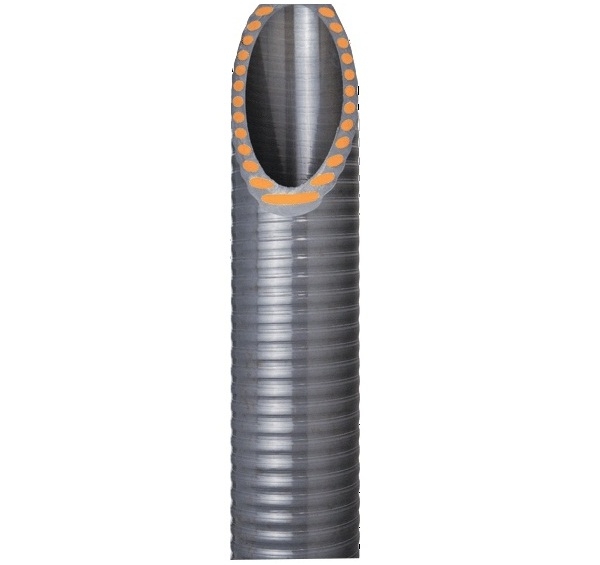

KCL Hoses
Especially designed for suction and discharge of abrasive materials such as gravel, sand and mineral particles It is recommended for heavy jobs in civil construction and mining.
Add to quote
| Nominal Diameter | Internal Diameter | Working Pressure | Vacuum | Burst Pressure | Lenght | ||
| 25° | |||||||
| pul. | mm | kgf/cm² | lbf/pul² | 760 | kgf/cm² | lbf/pul² | m |
| 2.1/2" | 61,5 | 38 | 540 | 760 | 600 | 1200 | 25 / 50 |
| 3" | 73 | 38 | 54 | 760 | 600 | 1200 | 25 / 50 |
| 4" | 99,5 | 28 | 398 | 760 | 900 | 1800 | 25 / 50 |
| 5" | 126 | 24 | 341 | 760 | 1000 | 2000 | 25 / 50 |
| 6" | 147 | 22 | 313 | 760 | 1300 | 2600 | 15 / 30 |
| 8" | 202 | 18,5 | 263 | 760 | 1500 | 3000 | 15 / 30 |
| 10" | 250 | 15 | 213 | 760 | 1900 | 3800 | 15 / 30 |
| 12" | 304,5 | 12,8 | 182 | 760 | 2000 | 4000 | 10 |
